3MF vs STL: What a 3MF File Is, and When to Use It

Both formats describe the same thing, a surface made of triangles, and both end up as the same G-code. The difference is everything around the triangles: units, colour, materials, multiple objects and print settings, all of which STL throws away and 3MF keeps. Here is what is actually inside each one, when the old format still wins, and how to move between them without losing the half that matters.

The short answer

Use 3MF if the software at both ends supports it, which in 2026 means practically everything. Use STL when you are handing a file to a stranger, an old machine or a service whose toolchain you do not know. Neither is a CAD format, so if the person on the other end is going to engineer from your file rather than print it, send a STEP instead.

What an STL actually holds

STL came out of 3D Systems in 1987 for the first stereolithography machines, and the format is exactly as simple as that origin suggests. A binary STL is an 80 byte header, a triangle count, and then a flat list of triangles. Each triangle is a normal vector and three vertex coordinates. That is the entire specification.

• No units. The numbers are bare. Whether 25 means millimetres or inches is a convention the receiving program guesses, which is why a model sometimes arrives 25.4 times too big or too small.
• No colour or material. There are unofficial colour extensions in the binary attribute field that two or three programs understand and everything else ignores.
• No structure. No object names, no assemblies, no transforms. Two parts in one STL are just one soup of triangles.
• No guarantee of validity. Nothing enforces that the triangles form a closed watertight solid, which is where holes, flipped normals and non-manifold edges come from, and why every slicer ships a mesh repair step.
• Wasteful storage. Every vertex is written once per triangle it belongs to, so most vertices appear six times or more. ASCII STL writes them as text, which is worse again.

None of that made STL a bad choice in 1987. It became a problem when printers grew multiple materials, colour, and print profiles worth sharing, and the file format had nowhere to put any of it.

What a 3MF actually holds

3MF was published in 2015 by the 3MF Consortium, whose members include Microsoft, HP, Autodesk, Dassault, Siemens, Stratasys and Prusa. Rename a .3mf to .zip, unzip it, and you can read the whole thing: it is an OPC package, the same container idea as a .docx, with XML inside.

• The mesh, stored sanely. Vertices listed once and triangles referencing them by index. Same geometry as the STL, a fraction of the bytes before compression even starts.
• Units, declared. The model element states millimetre, centimetre, inch, foot or micron. Scale accidents stop being possible.
• Colours and materials through the materials extension: per object, per triangle, textures, and multi-material assignments for machines that can print them.
• Several objects with placement. A build element that says which objects are on the plate and where, with transforms. A whole plate is one file.
• Metadata and thumbnails. Title, designer, licence, description, and a preview image that file browsers can show.
• Extensions for production workflows, slice data, beam lattices and secure content, so vendors can add what they need without forking the format.

The differences that matter in practice

The size difference surprises people the most. A detailed model that is a 45 MB ASCII STL will often be under 3 MB as a 3MF, with colour information the STL could not have carried at all.

The confusing part: two kinds of 3MF

Two very different files share the .3mf extension, and nothing on the outside tells you which one you have.

1. A model 3MF. Exported from CAD, from Fusion, SolidWorks, FreeCAD or Windows 3D Builder. Geometry, units, maybe colour. It is a replacement for an STL and nothing more.
2. A project 3MF. Saved by a slicer. Model plus orientation, supports, modifiers, per object settings, filament and printer profiles, sometimes several objects arranged on the plate. PrusaSlicer, Bambu Studio and Orca all use this as their native project file.

This is why a model downloaded from MakerWorld or Printables sometimes opens with everything set up, and sometimes opens as bare geometry. It is also why a project 3MF saved by one slicer may not fully open in another: the model always survives, the settings only travel between compatible tools. When you share a project 3MF, say which slicer and printer it came from, because the profile inside it is written for that machine.

Which one should you use

• Your own work, start to finish: 3MF. Smaller, safer on units, and it keeps the setup that made the print work.
• Multi-colour or multi-material: 3MF, or nothing. STL physically cannot describe which part is which colour.
• Sending to a print service or a stranger: STL. Unless they say otherwise. It is the format nothing refuses.
• Publishing a model: both. 3MF as the good experience, STL as the compatible fallback.
• Sending to a machine shop: neither. A mesh is the wrong input for machining. Send a STEP and a drawing, and see CAD file formats for manufacturing for the whole map.

Converting between them

3MF to STL

Open the 3MF in any slicer and export as STL, or use Windows 3D Builder, Blender, Meshmixer or FreeCAD. The geometry crosses intact. Everything else, colours, materials, per object settings, units and metadata, is dropped, because the destination format has nowhere to put it. If the 3MF holds several objects, decide whether you want them merged into one STL or exported one file each, because tools differ on the default.

STL to 3MF

Import the STL and save or export as 3MF. This gains you the container, the compression and a declared unit, but it cannot invent information that was never in the STL, so you get a monochrome 3MF unless you assign colours yourself. Doing the conversion at the start of a project is still worth it: from then on, the file remembers your work.

Mesh to CAD, which is not a conversion

Going the other way, from either format back to an editable solid, is the one route that is genuinely hard, and the online converters that promise it are quietly doing something less useful than you think. That is its own article: STL to STEP.

What neither format carries

Both are surfaces chopped into triangles, and a triangle mesh has coordinates but no intent. Nothing in an STL or a 3MF says which dimension is critical, what tolerance the hole needs, what the wall thickness should be, or which face has to stay flat. That is fine when the file goes straight to a printer that will follow it literally. It stops being fine the moment a person has to make or check the part.

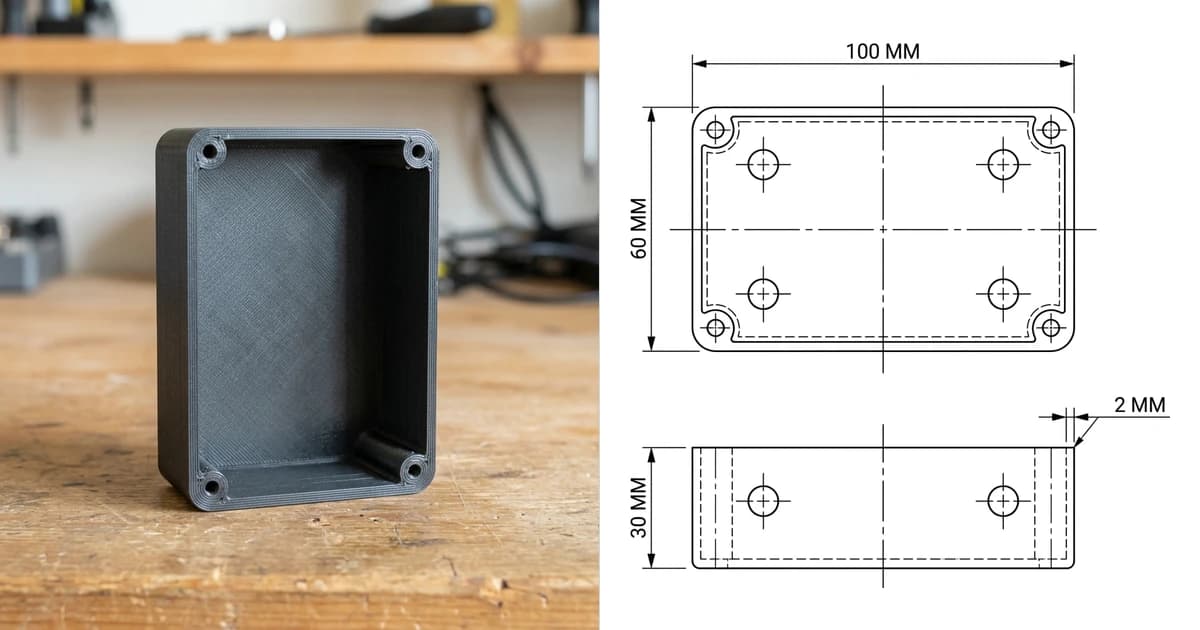

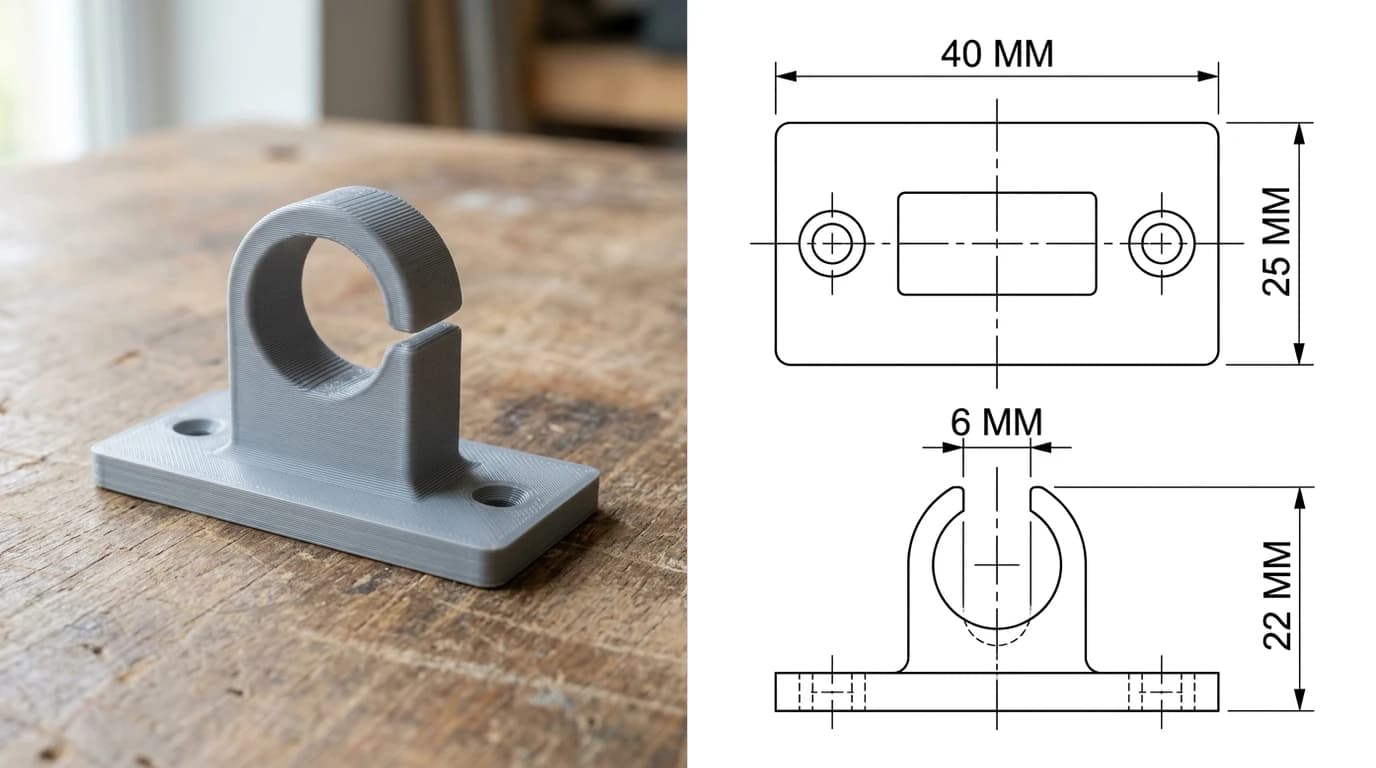

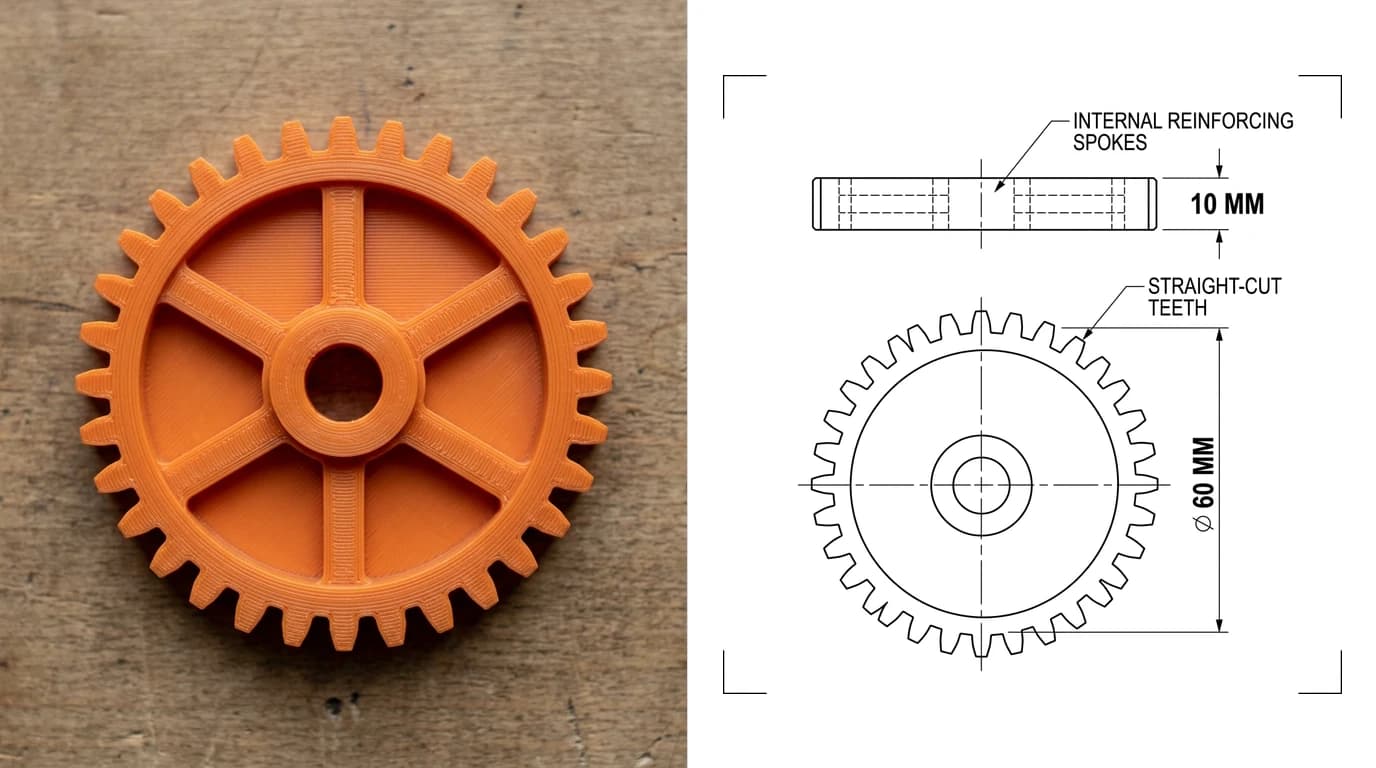

The moment you need those numbers written down, you are back to a technical drawing, which is still how a manufacturable part is specified, and why shops keep asking for one even when you have already sent the model. If your part exists as a print or as a photo and not as a drawing, TechDraw AI produces the dimensioned 2D drawing from an image and exports it as DWG, DXF, SVG or PDF. If what you need is the mesh instead, the image to STL tool goes the other way and gives you something printable.
